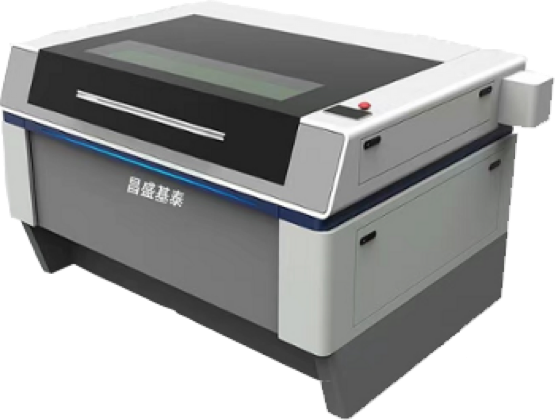

Laser power :150w
Working format :1300*900mm
Work platform : Aluminum knife platform/honeycomb platform (optional)
Maximum engraving speed :1000mm/s
Maximum cutting speed :600mm/s
Operating voltage :110v/220v±10% 50/60hz
Minimum Engraving Size : Chinese characters 2 * 2mm, letters 1 * 1mm
Support format :AI/PLT/DXF/BMP/CDR
Water temperature requirements :5-30℃
The breakpoint continues to carve : Yes
Positioning accuracy :< 0.01mm
Control mode :DSP

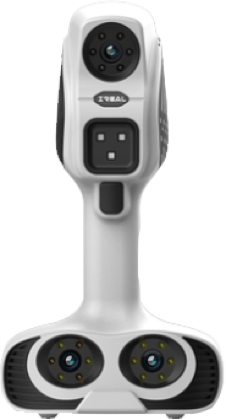

Light source
Type: Infrared VCSEL structured light
Visibility: invisible light
Safety: Class 1 LASER
Technology: combined array structure optical scanning technology
Color scanning: support
Scanning characteristics
Non-stick point scanning: feature stitching, texture stitching, hybrid stitching
Portrait scanning exclusive: support no light scanning, hair scanning, dark environment scanning, automatic removal of human body shaking layer
Ideal scanning distance: 350-550mm
Medium and large items: ultra-long scanning distance (effective): 280-1000 mm
Scanning optimization: scanning range: 580x550mm
Maximum scanning speed: 1,500,000 points/second
Fineness: point spacing 0.2-3mm
Precision
Point precision (single frame): up to 0.1mm
Splicing accuracy: up to 0.3mm/m
Data output
Output formats: OBJ, STL, PLY, ASC, SK
Support for 3D printing: Yes
Hardware
Working temperature: 0-40 ℃
Interface mode: USB3.0
Scanner weight: 850g
Scanner size: 140x94x258mm
Structure: 3 groups of invisible light emitting light sources, 3 camera units and 3 groups of fill lights are integrated into one body.
Size and weight: scanning host size: 140x94x258mm, weight: 850g
INPUT: 100-240VAC, 50/60Hz
Operating power supply: OUTPUT: 24 = 3.75 A, 90W MAX

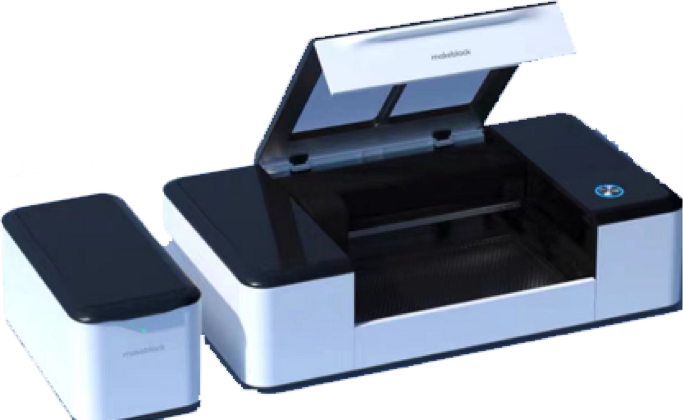

Product size 958x528x268mm
Laser power 40W
Product weight 43.5kg
Laser lifetime 8000-10000 hours laser safety level Classl (FDA classification standard, high safety level)
Workbench format 500x300mm Camera Type HD Ultra Wide Angle Lens
Workbench appearance Black (special process) camera pixel 5 million
Placeable material thickness 22mm (including honeycomb panel) visualization area 490x290mm
Placeable Material Size 500x300x52 mm (without honeycomb panel)
Positioning accuracy 0.025mm operation panel mechanical key + ring status light
Focus accuracy 0.1mm Body Material V0 Fire Rated ABS/PC
Resolution 1000 DPI body interface USB interface/Ethernet interface/power line interface/aviation line interface
Operating noise ≤ 70dB Smoke outlet diameter 63.5mm
Storage space 4G
Positioning mode Computer Vision Positioning Power Specification 220, 100 VAC
Cooling method Built-in water circulation cooling system, without external connection of water pump and water tank input power 600 W (including purifier)
Blowing mode Built-in air auxiliary device, no need to connect air pump externally
Connection mode Wi-Fi/USB/Ethernet Storage Humidity 5-90 ℃
Focusing mode Computer vision autofocus/Working temperature 0 ~ 35 ℃ 19. Operating System 64-bit Windows7 macO SMojave 10.13
Memory space 4GB RAM
Storage space 5GB of free space
Operating systems are supported Windows, macOS support design software AutoCAD, SolidworksInk scape CorelDRAW,PowerPoint Illustrator Photoshop GoogleAutoDraw, etc.
Support processing files SVG, DXF, JPG, JPEG, PNG, BMP, PDF, TIF, CR2, etc.
Maximum cutting thickness ≤ 15mm tung wood board
Cuttable & Engraved cardboard, corrugated cardboard, wood, acrylic, cloth, denim, leather, backing board, two-color, board, PET, rubber, veneer, cork, sandpaper, food, fiberglass, plastic, delrin, etc."

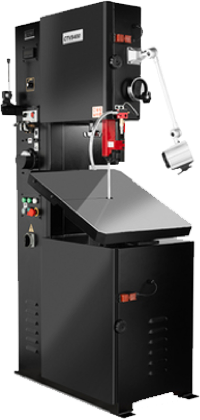

Saw cut throat deep :400mm
Sawing speed :0-1400 rpm
Length of saw blade :3390-3467mm
Workbench :550x600mm
Main motor :1.5KW(2HP)220V
Maximum sawing height :285mm
Saw belt width :3~16mm
Table tilt angle :15~45°
Grinding motor :0.09KW(1/8HP)
Welding current :2.4 kva
Net weight /Gross weight: 310/380 KG
Package size :107x80x200cm

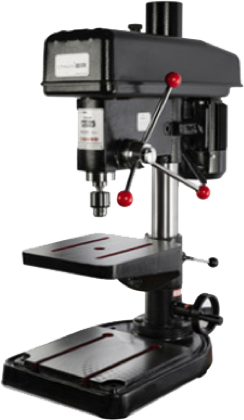

Maximum borehole diameter :25mm
Column diameter :85mm
Maximum stroke of main shaft :125mm
Spindle end taper :MT.3
Spindle speed :340-1800r/min
Size of work surface :290x320mm
Size of the base working surface :335x335mm
Distance from spindle axis to column surface :242.5mm
Distance from the lower end of the spindle to the worktable :0-265mm
Distance from the lower end of the main shaft to the working surface of the base :265-545mm
Motor :1.1KW
Gross weight /Net weight: 160/140kg

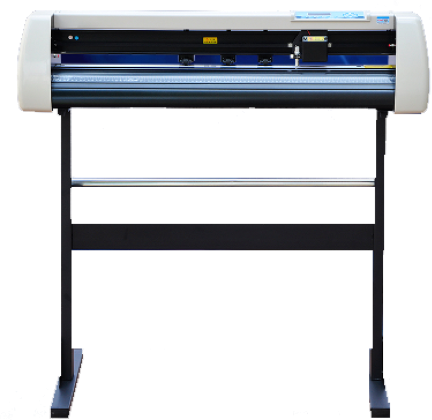

Cutting speed :0-800MM/S
Cutting knife pressure : 0-500G (adjust at will)
Cutting accuracy :0.05MM
Repeatability :<+-0.1MM< /li>
Rated power :120W
Interface : Standard RS 232 (serial)/USB
Drawing instructions :HP-GL/DM-PL
Control Panel : Top-mount, 6x2 character LCD display, touch keyboard
Compatible system : WINxp/WIN7 (32-bit, 64-bit)/WIN8/WIN10
Motor drive Capstan Dual High Torque Motor, 16 Subdivision Drive
Operating environment : Temperature: + 5-+ 35, relative temperature 30% -70%
Type of drawing pen All kinds of water-based, oil-based and atomic brushes with a diameter of 11.5mm
Model Type H1380
Paper feed width :1300MM
Engraving width :1200MM
Body size :150/22/12CM
Weight :24KG
